ENGINEERING
COMPLIANCE
EQUIPMENT

'



ENGINEERING

Mobile and fixed wireless telecommunications networks design, including coverage, technologies, topologies, security, performance and service levels, among others.

TECHNICAL FEASIBILITY

Multipath/Reflections
Multipath/Reflections

Obstructions
Obstructions

Clearance
Clearance

Multipath/Reflections
Multipath/Reflections

Technical feasibility studies, including conceptual and functional design, line of sight analysis, service parameters and system design for any type of topology. These simulations can consider land use and obstructions modeled on 3D polygons. It considers multiple technologies (*), predicted performance, recommended security and applicable regulations (Subtel / DGAC / Town Hall).

2D/3D DIGITAL MODELING

3D View
3D View

Vector Map
Vector Map

Building polygons
Building polygons

3D View
3D View

Use of recently updated, high-resolution satellite maps to model 2D and 3D obstructions and consider land use. It uses Digital Elevation Models (DEM) such as:
-MDT: 2D-3D Digital Terrain Model. Elevations with resolutions up to 1m and recent updates.
-MDS: 2D-3D Digital Surface Model that includes all existing objects on the surface (buildings, trees, infrastructures, etc.).
-Clutter: Land use layer, for multipath / reflections / difractions calculations.

OUTDOOR SYSTEM DESIGN

Cell Planning / design
Cell Planning / design

Site Planning / Design
Site Planning / Design

Infrastructures design
Infrastructures design

Cell Planning / design
Cell Planning / design

Design of outdoor radiant systems for multiple technologies such as 3G / 4G / 5G, WiFI, among others (*). The design can consider digital modeling with high resolution maps and 2D / 3D obstructions.

INDOOR SYSTEM DESIGN

Unilinear for inbuilding cells
Unilinear for inbuilding cells

Unilinear for building mobile coverage
Unilinear for building mobile coverage

Antenna inside a tunnel
Antenna inside a tunnel

Unilinear for inbuilding cells
Unilinear for inbuilding cells

Design of indoor radiant systems for multiple technologies such as 3G / 4G / 5G inbuilding and WiFI, among others (*). The design can consider the attenuations of the construction materials of the site.

SIMULATIONS

Base station simulation
Base station simulation

Trunk network and wifi hotspots simulation
Trunk network and wifi hotspots simulation

Hotspots WiFI
Hotspots WiFI

Base station simulation
Base station simulation

Coverage simulations for radiant systems of any type, both indoors and outdoors. It considers technologies such as 3G / 4G / 5G, WiFI, communications for IoT / IIoT, among others (*). These simulations can also use land use types and obstructions modeled on 3D polygons.

TECHNICAL DOCUMENTATION

Electrical specifications
Electrical specifications

Cells projection
Cells projection

Previous level measurements
Previous level measurements

Electrical specifications
Electrical specifications

Development of technical bases or proposals, for public and private tenders, both for regulatory compliance, as well as for the design of technical requirements such as equipment, accessories, detailed engineering, plans, etc.

Engineering considers technologies such as:
DAB, DVB, DRM, ISDB, ATS, FM / 3G, 4G, 5G, SON / DMR ,TETRA, LTE / LTE-TD, WIMAX, GPON, EPON / OTN, MPLS, C-Eth, SDH, Microwave, SDN / M2M, NB-LTE, LORA, SIGFOX / WiFI



COMPLIANCE

Application for authorizations to install, operate and develop telecommunications services in Chile.

According to the legislation in Chile, any wireless telecommunications system requires authorization for its operation. Any telecommunications system in operation that is not authorized with the corresponding license, permit or concession risks fines issued by the regulator (Subtel).
Fresnel engineers are registered in Subtel, and they have extensive experience in chilean regulation. Thess includes, authorization, modification, renewal and / or regularization of all types of telecommunications systems.



LIMITED PERMITS

Operation authorization for wireless private networks, links and systems for voice, video and data such as; Point to point links (microwave, backhauls, etc.); Multipoint networks for CCTV, video surveillance, Voice over IP, Wireless LAN; VHF / UHF radio communications (base stations, repeaters, etc.), among others.

Permisos Limitados Subtel

SERVICES



MEASUREMENTS AND CERTIFICATIONS

Wireless and wired

Radio spectrum measurements such as; signal power mapping, channel width, interference analysis, AM / FM / ASK / FSK demodulation, etc. Measurements and certifications for antenna wiring (distance to failure, VSWR), and also measurements and certifications for F.O. and copper wiring.

INSPECTION

Regulatory compliance

Measurements and technical visits in order to check and / or certify the regulatory compliance for telecommunications systems.


MUNICIPAL DEALING

Telecommunication infrastructure sites

Installation notice, construction permits and sensitivity report for telecommunication sites near sensitive places (example: schools or hospitals). Also, dealing process with Town Hall and/or related organizations.

TELECOMMUNICATIONS SITES ACQUISITION

Negotiated by specialists

Professional specialists carry out the whole process to acquire new sites for telecommunications sites. That is, sites search, negotiation with site owner, acquisition or lease and installation permits.


ALBENTIA

Official distributors

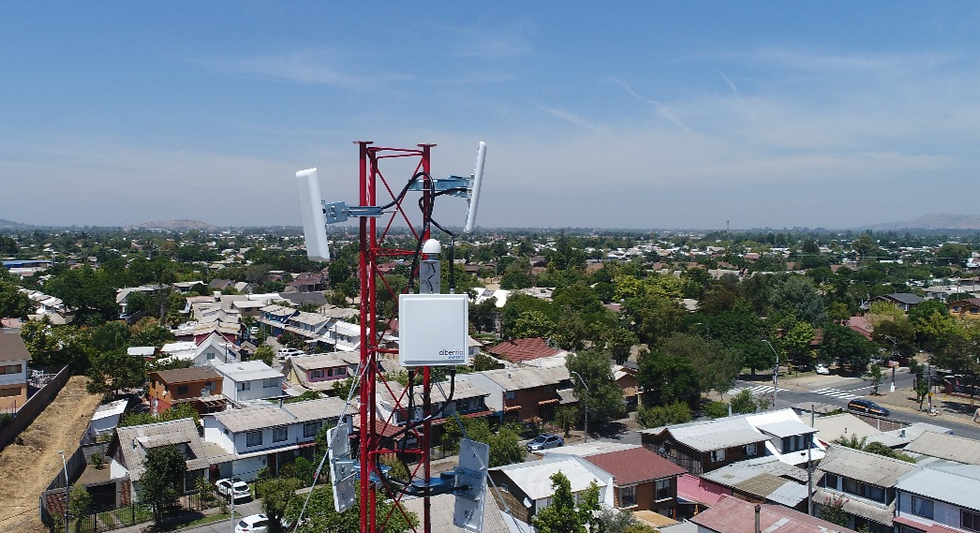

Albentia is a company specialized in wireless equipment for WISP, allowing these types of operators great profitability and quality in their operations. For more than 8 years, Fresnel has been distributing Albentia equipment in Chile. Albentia means high capacity (Mbps) a large number of clients per AP and the best protection against interference in the market.



ABOUT US

Since 2009, we have participated in hundreds of wireless and security telecommunications projects of all sizes and complexity throughout the Chilean territory. This, added to the knowledge, expertise and management capacity of our human resources, allows us to guarantee delivery of quality, rigor, precision, diligence and seriousness in all our services.
